Restored Merc with Quincy Welding pipes


Rare OMC race engine


1960 Molinari boat


Restored Quincy Looper FD-67


This Looper is from the estate sale of Phil Crown (Tx). This motor was in terrible condition. I soaked the pistons for weeks and ended up beating them out of the bore with 2x2 blocks of wood. The rotating guts of the motor were junk. I included a picture of the rusted crankshaft. I only had to replace one piston and Bruce Summers came up with new rings for the 2.455 bore. I replaced the small reed cages with a set of large opening cages and had the 3rd ports included. I also decided to add a Merc650 distributor CD ignition and mounted it to the Quincy base plate I also bought with the motor. I still have to color coat the megaphones, but other than that, the motor is complete and ready to go. Regards, Roger


FD-67 (2)


FD-67 (3)


FD-67 (4)


FD-67 (5)


FD-67 (6)


FD-67 (7)


FD-67 (8)


Restoration Finished on Quincy Looper FD-67

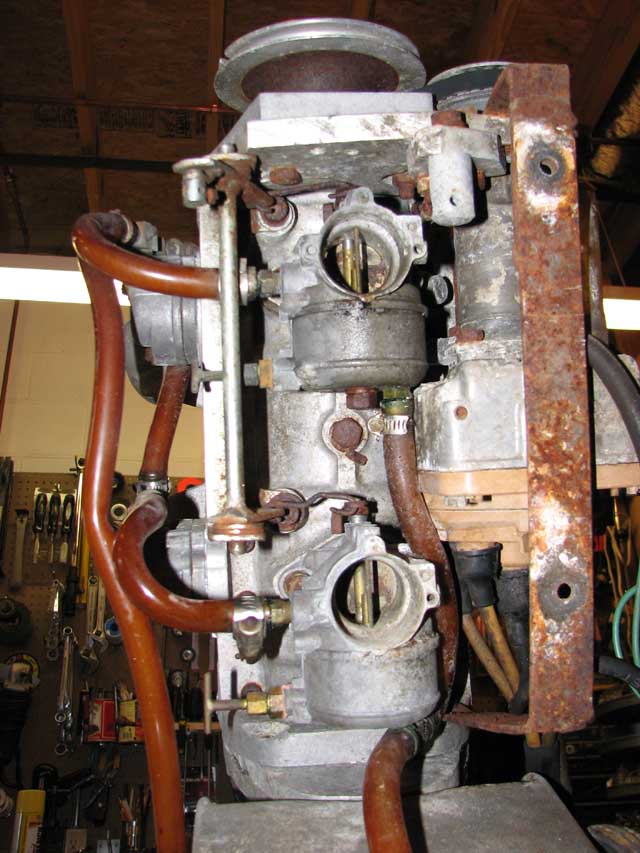

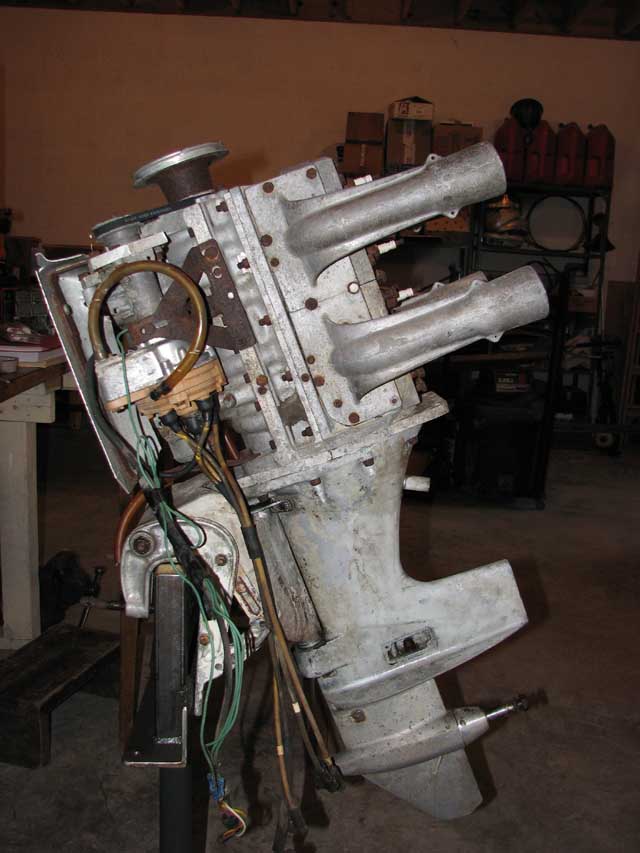

FD-67 - Before Restoration


FD-67 - Before Restoration (2)


FD-67 - Before Restoration (3)


FD-67 - Rear View


FD-67 - Assorted Looper Parts

Assorted Looper Parts.jpg

FD-67 - Before Restoration (block)


FD-67 - Before Restoration (rod assembly)


FD-67 - Reed Cages


FD-67 - Reed Cages (2)


FD-67 - Block Assembly

FD67Block AsmParts650.jpg

FD-67 - Carb Adv Lever


FD-67 - Mag Advance


FD-67 - Mag Cover


FD-67 - Block, back view


FD-67 - Bore View


FD-67 - Megaphone


Alky 30H


Alky 30H - before restoration


Inman Purchase
